Wiser Smart Plug LED behaviour guide Follow

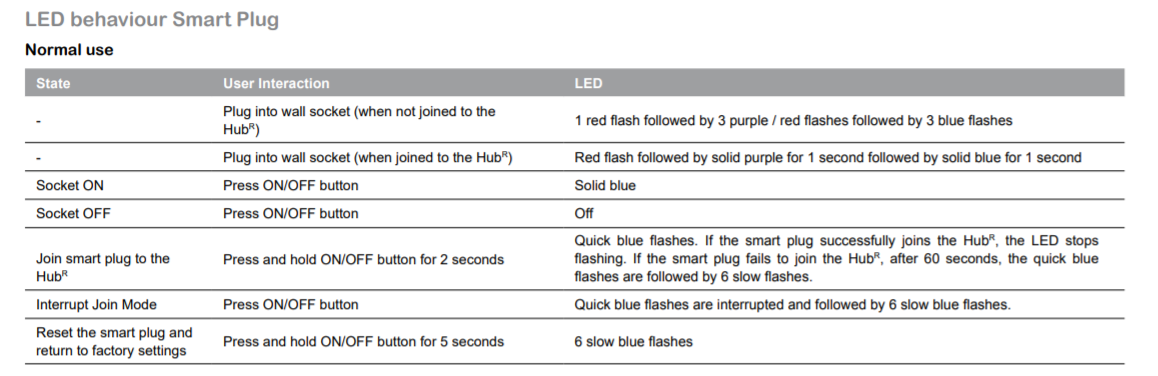

LED indications
Normal use
| User Action | LED indication | Status |
Plug into wall socket (not joined to the Wiser Hub) |
1 red flash followed by 3 purple/ red flashes followed by 2 blue flashes. |
– |
Plug into wall socket (joined to the Wiser Hub) |
The red flash followed by solid purple for 1 second followed by solid blue for 1 second. |
– |
Press ON/OFF button |
Solid blue |
Socket ON |
Press ON/OFF button |
Off |
Socket OFF |
Press and hold ON/OFF button for 2 seconds |
Quick blue flashes. If the Plug successfully joins the Hub, the LED stops flashing. If the Plug fails to join the Hub, after 60 seconds, the quick blue flashes are followed by 6 slow flashes. |
Pairing Plug to the Wiser Hub |
Press ON/OFF button |
Quick blue flashes followed by 6 slow blue flashes. |
Pairing mode interruption |
Press and hold the ON/OFF button for 5 s. |
6 slow blue flashes. |
Reset the Plug and return to factory settings |
