Getting to know your 2nd Generation Wiser HubR. Follow
You can control heating and hot water circuits directly through the Wiser HubR 2nd Generation.
Refer to Device compatibility list to find out which devices are compatible with Wiser HubR 2nd Generation.
The Wiser HubR 2nd Generation is available in three variants, according to your heating system:
- One Channel (CCTFR6311G2D): 1 x Heating, for combination boilers.
- Two Channels (CCTFR6312G2D): 1 x Heating, 1 x Hot water, for conventional boilers with a separate hot water cylinder.
- Three Channels (CCTFR6313G2D): 2 x Heating, 1 x Hot water, for large properties with dual heating circuits.
Once installed, the Wiser HubR 2nd Generation can be setup and operated accordingly

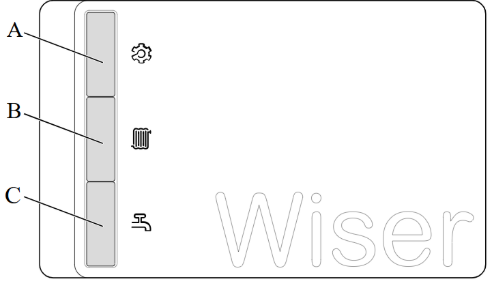

| A | Setup | Activates the temporary Wi-Fi® network of the HubR. It is used during the commissioning process and troubleshooting. |
| B | Heating Override* |
Turning on the heating override will turn on the connected heating system for 2 hours regardless of any settings in the app or thermostats. To start override: press and hold button for more than 3 seconds. To stop override, short press the button. |
| C | Hot Water override |
Turning on the Hot Water override will turn on the connected Hot Water for 1 hour. In this state the hot water will be regulated by a cylinder thermostat or the boiler. When the Hot Water override is active, the Hot Water LED will flash green. To start override: press and hold button for more than 3 seconds. To stop override, short press the button. This will put the hot water back under system control. |
* NOTE: The heating override switches off when the temperature is close to set point. However, in the app, the heating flame symbol will continue to display until the set point is reached. This is normal operation and will not affect the heating.
Updating
Firmware updates are intended for security and functional updates to help ensure that the System is always up to date. The firmware updates automatically and runs in the background.
