2nd Generation Wiser HubR LED Behaviour Guide Follow

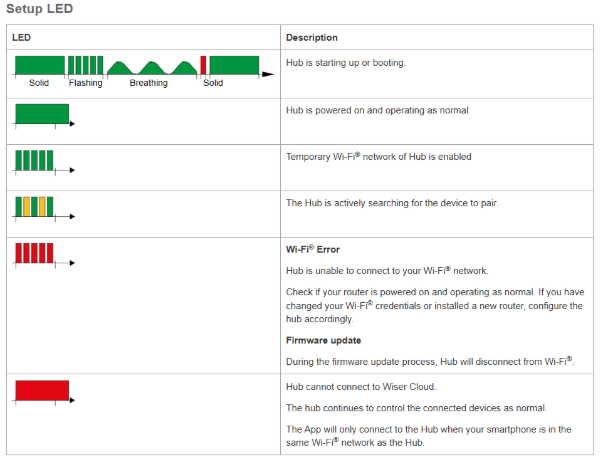

Setup LED
| LED | Description |
|---|---|
| Green: Solid > Flashing > Breathing, Red: Solid, Green: Solid | HubR is starting up or booting. |
| Green: Solid | HubR is powered on and operating as normal. |
| Green: Flashing | Temporary Wi-Fi® network of HubR is enabled |
| Green & Amber: Flashing | The HubR is actively searching for the device to pair. |
| Red: Flashing |
Wi-Fi® Error HubR is unable to connect to your Wi-Fi® network. Check if your router is powered on and operating as normal. If you have changed your Wi-Fi® credentials or installed a new router, configure the HubR accordingly. Firmware update During the firmware update process, HubR will disconnect from Wi-Fi®. |
| Red: Solid |
HubR cannot connect to Wiser Cloud. The HubR continues to control the connected devices as normal. The App will only connect to the HubR when your smartphone is in the same Wi-Fi® network as the HubR . |

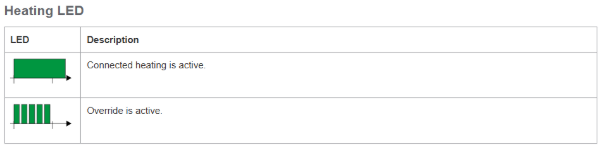

Heating LED
| LED | Description |
|---|---|
| Green: Solid | Connected heating is active. |
| Green: Flashing | Override is active. |
Other LED Indications
| LED | Description |
|---|---|
Red: Solid |
The HubR is connected to Wi‑Fi only, with no internet. |
Red: Flashing |
The HubR is searching for a Wi‑Fi network. |
Green: Solid |
The HubR is connected to the internet. |
Long blinking Green and Amber |
The HubR has connectivity issue. Turn off the HubR and turn on after some time. |
